Altoona Expands

Altoona & Logan Valley

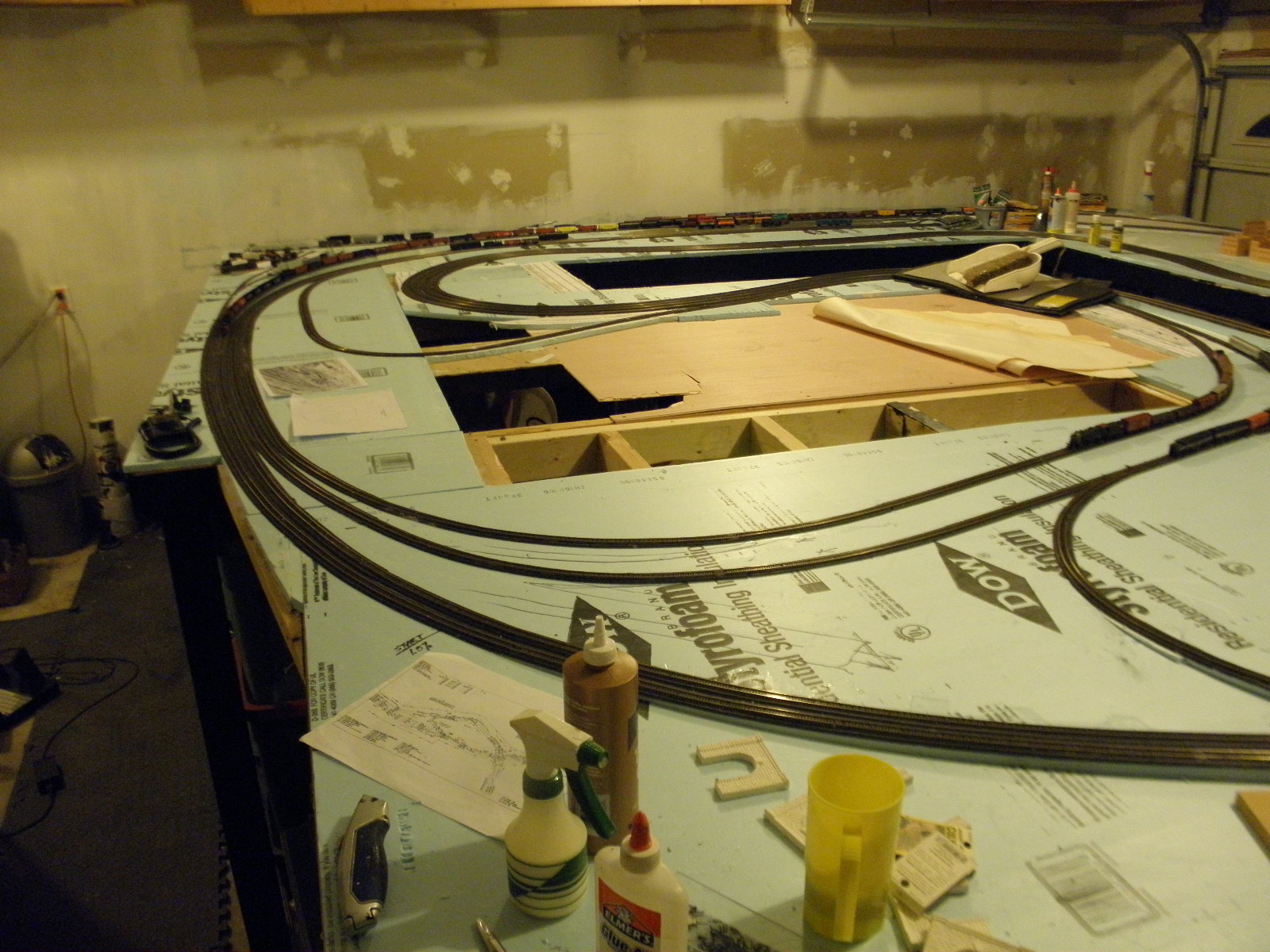

Since I had used up all the code 55 track available I was unable to continue with the branches and yard. I broke down and purchased some code 80 flex track and began to lay out the Altoona & Logan Valley tracks. I felt I might get away with using the oversize rail. Since the track will be buried in the street, the only visible portion of the code 80 would be the rail head. I removed the Tomix track I was experimenting with and created an elongated loop from 17th Street in Altoona to a point just shy of Juniata. I tucked a return loop into the reverse curve at Millers. This return loop made it very clear that there still wasn't enough room for the Altoona section of the layout, despite the extra foot or so added over the bookcase.

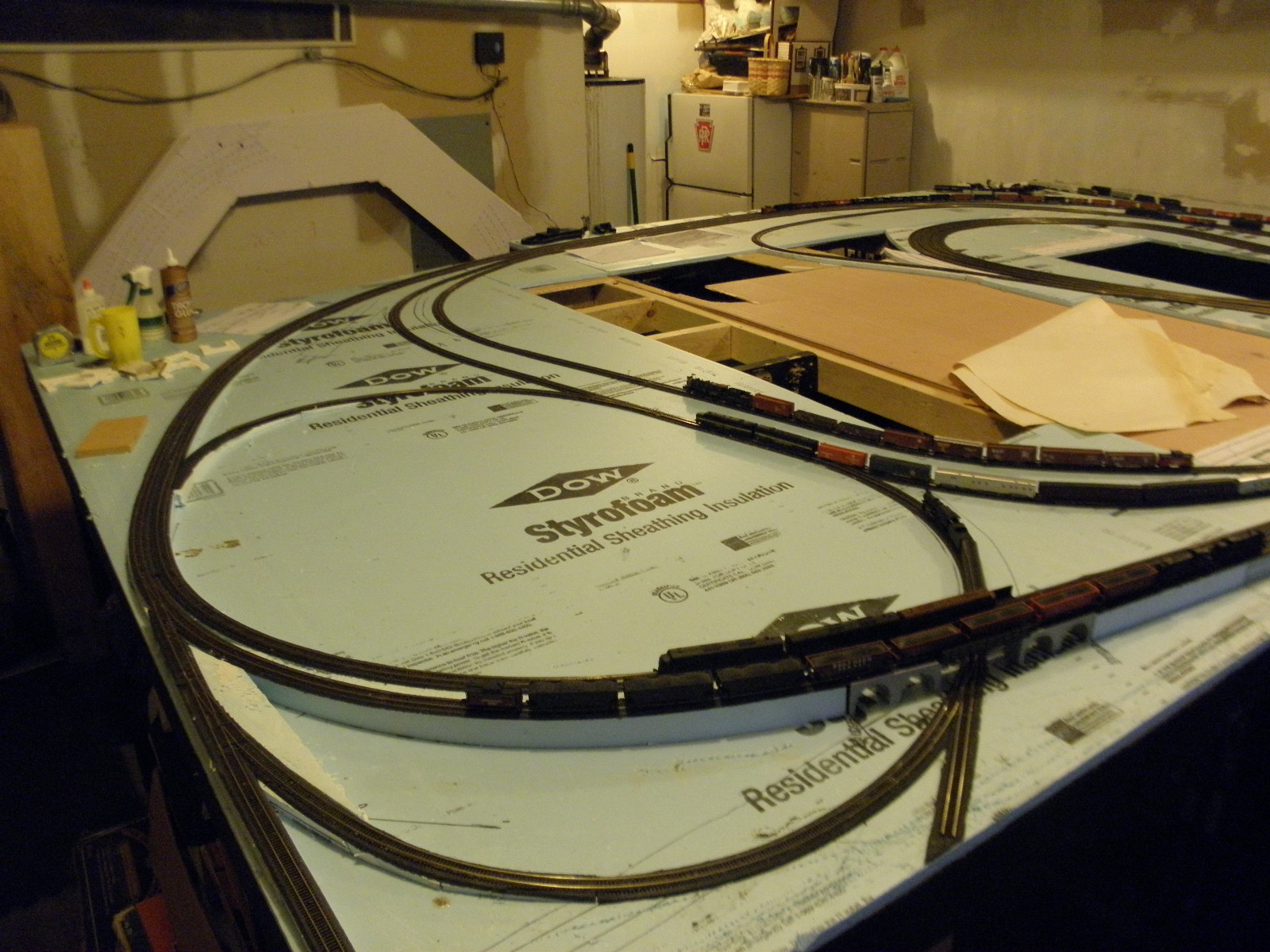

So I started to wonder if the mainline between Wikes and McCanns could be shifted over to allow more room in Altoona. Realigning the mainline yet again is not as big an issue as it sounds. Elevating the mainline between ALTO and Horseshoe Curve is one of the next phases in the project. Moving the tracks a bit to the "north" can be done during the elevation.

Updated Track Plan

Apparently, change begets change. I had been looking over the Gallitzin area on topographic maps and realized I wasn't satisfied with my version. I started doodling on a copy of the trackplan. After relocating the trackage thru The Curve, I reworked Bennington and Gallitzin to look a bit more like the real thing. Moving the New Portage tunnel closer together with the twin bores opened a lot of space in that corner. I revised the New Portage branch to take advantage of this. I used some artist license on the westbound connection. Instead of running it from the east portal like it should, it branches off at Gallitzin on the wrong side of Tunnel Hill. Taking that liberty allows me to hold a longer train on the "Hollidaysburg" loop.

I also decided to keep the connection to the Kittaning Run Railroad at Bakers Run at the east side of Horseshoe. Since the KRRR was a common carrier before it's abandonment it seemed to fit into the interchange scheme of the other branches. Once again a touch of artistic license is in use. According to the minutes of Congressional hearings in 1915 both the Glenwhite and Kittanning Run lines were expensive to operate. Neither one of them would have survived to the time period modeled on the Allegheny Eastern. Fortunately, model railroading is not affected by the foibles of finance and the two lines struggle on to the early 1950s.

Scenery Sketch

I've also been sketching up some idea of what the scenery might look like. At one point I stopped and thought, "What was I thinking?". You can see from the sketch at left that the scenery at Gallitzin covers a lot of real estate in N scale. What's more the Altoona section of the layout is about twenty feet long. If you take the time to count the streets running "north" of the tracks that's about 20 city blocks! True, most of the buildings will be flats or backdrop painting, but that's still a lot of urban scenery. Fortunately Altoona is only two or three blocks wide at the 17th Street end. My original idea was to create a backdrop showing the Juniata shop complex. The addition of the Altoona & Logan Valley trackage pushed that out the plan. The complex will not appear where it's supposed to. It's been relocated to the aisle side of the yard, which means I don't even have to paint it on a backdrop.

Serendipity stepped in at Antis/Gallitzin. The overpass there is the perfect parting line for the two areas. Due to there locations at the extreme ends of the layout main lines Gallitzin Road (Gallitzin) and Lower Riggles Gap Road (Antis) could be combined without some crazy scenery trick. My maps and track charts show that  the mainline crosses the Little Juniata River between Antis and Bellwood so I'm adding that feature into the scenery at this point. It won't be the scene divider that the helix would have been, but it will work.

Like always, I won't get a true picture of how this all can work until I actually start mocking up some scenery. That won't start until after the grades are created.

Going Up!

Allegheny Eastern Plan, 1/25/2012

I've decided to forego the helix. The "real estate" the beast would consume could be put to better use. Besides, I save hundreds of dollars in track. In its place will be a lot of switching and interchange.

Interconnections

Omitting the helix also means some changes to the grades. In the plan on the left I have marked the elevation at key "mile markers" ( I told you they would come in handy). The west bound grade starts at ALTO at "mile post" 0 at 0" elevation (about 51" above the floor) and climbs at 1.3% to "milepost" 20 where it reaches the maximum elevation of 3" (40 scale feet). It then begins a 1.5% descent into Gallitzin reaching the bottom at "mile post" 39 (westbound) and "milepost" 44 eastbound. I'm bending reality here, the climb actually tops out at the tunnels. Without the helix this is the only way to run back to the 0" elevation at Altoona. Sacrificing the last half of the grade and the helix presents some other opportunities.

On the right is a detail of the area where the helix would have been located. Instead I have drawn in a series of interconnections.
Red = PRR sidings or secondary track
Purple = Altoona Northern
Blue = Altoona & Logan Valley
Green = Glenwhite Coal & Lumber Co.
Brown = Kittanning Run Railroad

The three PRR sidings into the area include two tracks that ran to coke ovens back in the day. Both are located around Gallitzin. The third siding runs to the A&LV power house in East Altoona. Notice that the Altoona Northern and A&LV tracks interchange. Although I could find no evidence that this actually happened, I bent the rules a tad. The interchange will provide an excuse to run boxcab motors and freight under the wire. The Altoona Northern / Glenwhite loop remains pretty much the same except for the introduction of a small yard / passing siding. I drew a second Glenwhite connection that once existed (the wye at "milepost" 22) and also show the connection for the Kittaning Run Railroad (abandoned about 1914) on the east side of Horseshoe Curve. To include these two connections requires that most of the other tracks be elevated to about 1.5" to keep the grades to a minimum. I don't mind elevating the area as I think it would create some scenic interest, but I think the extra connections at The Curve might be two too many.

So much for reviewing the plans. Time to show some video of the "new and improved" Allegheny Eastern in action. The video follows the mainline west from East Altoona to Gallitzin. Please forgive the quality of the video, I'm still learning to use the camera...



In the first segment we catch a pair of  eastbound BF16 sharks as they pass the engine terminal at East Altoona on Track 1 A westbound freight blasts by on Track 3. The mainline splits in two at this point as it passes through and around the yard. Next, a Shay pushes a pair of empty hoppers to the Altoona Northern / PRR interchange at Juniata. Our cameraman switches to an aerial view to get a wider angle on freight action at Juniata with Kittanning visible in the foreground. Then we're looking west towards the area of Altoona Station where the mains come back together after passing the yard.. Following the westbound freight to Wikes we catch three freights rounding the curve as an eastbound passenger passes on Track 2. Then the camera moves to The Curve, looking east towards Kittanning as several freights make their way past Kittanning Point in both directions. Giant Tape Measure will be replaced by K4s #1361 in 1957, about eight years from now. A little farther west the camera catches the Glenwhite Shay dropping off two loaded gondolas at Kittaning Point as the Great Wreath hangs in the sky. An aerial view of Burgoon Run shows the Glenwhite Shay idling on the siding as two eastbound freights rumble by. The scene switches to McCains Curve looking towards Horseshoe as an L1s barrels west on Track 3. A second westbound, hauled by an AS16m follows on Track 4 while a short eastbound passenger train drifts down track 3 towards Altoona. At Bennington a K4s holds on the New Portage branch while westbound traffic passes on the main. Eastbound traffic can be seen heading downgrade in the background.  A wider view shows the arrangement of tracks approaching the tunnels and a load of empties heading east. The camera drops down so we can watch the train cross the New Portage bridge. A wider view of trains entering and exiting the three tunnels. That westbound local from Hollidaysburg will take the westbouund main once the controller as SF tower gives the go ahead. We are on the top side of Tunnel Hill now as a westbound freight exits the west portal of Allegheny Tunnel. A second westbound follows soon after thru Gallitzin Tunnel.   Finally, some shots Altoona & Logan Valley cars passing on 10th Avenue and a look at the 3" radius loop at 17th Street. The final scenes show how well the Bachmann PCCs can run on such a tight curve, including a few seconds of open throttle. I never suspected they could negotiate these curves at high speeds! I usually run the trolley's at a more sedate pace..

Conundrum!

Allegheny Eastern Track Plan Jan 20, 2012

I updated the track plan to reflect all the recent changes though I still have to figure out the track ladders in Altoona Yard. I've been using the printed drawing to sketch some scenery, signal and block locations and other ideas. Doing so has led me to another conundrum.

Gallitzin Sidings

Up until this point the plan was to install a two level helix under Gallitzin so I could raise the entire area six inches. As I was researching scenery details from old topographic maps I learned that there used to be additional sidings in the Gallitzin area. Near as I can tell, they all served coke ovens. This was pretty common way back when. The branches at Kittaning point also served coke ovens as well as mines. I'm not sure I'm going to model the ovens, but I definitely want to include the sidings. One of the sidings was off the eastbound main coming into Gallitzin. This will give me and excuse to fill that extra space that now exists after the re-alignment. Another siding was also off the eastbound main just past the New Portage bridge. This siding was double ended. Two other sidings were on the westbound mains. One directly east of the New Portage connection and the other at the west portal of the Gallitzin bore.

Adding these sidings creates more traffic for the local freights. The siding on the east side of Gallitzin will serve a team track instead of coke ovens so that almost any kind of freight car can be spotted there. The two other siding will actually connect into the Altoona Northern / Glenwhite loop and handle all kinds of traffic, including coke. All of that traffic will be "inferred" since very few, if any, actual industries will be modeled along thos tracks. The double ended siding east of New Portage will be the only track where actual coke ovens will be modeled.

Altoona Northern Connections

Meanwhile back at Altoona research has shown that the Altoona Northern presents more opportunities for switching. Besides the interchange with the Pennsy at Juniata, it appears that the A&M also connected to the Altoona & Logan Valley about 9 blocks west of the PRR interchange. I don't know what the actual situation was but I know what it will be on the Allegheny Eastern. The A&N exchanges freight with the traction line. This means box motors hauling freight cars through  the streets of Altoona. The freight will originate from industries on the the A&N as well as the Pennsylvania. It also means that the A&N exchanges passengers with the A&LV. Trolley passengers bound for Dougherty, Highland Park and Wopsononock can take the A&N.

Altoona & Logan Valley

Extending the Altoona & Logan Valley to East Altoona will require some modification of the engine terminal. Since the workbench sits directly under this area there is a possibility of widening the benchwork at the roundhouse. I want to add a 1 1/2" extension on most of the layout edges because there are too many places where track is right on the edge. The A&LV extension would be part of that revision. I could also lay A&LV tracks towards Hollidaysburg, running them up the length of the yard past Red Bridge.

I made a list of what "branch" generates what traffic and there is a lot of variety. The Altoona Northern will handle passengers, coal loads, freight of all kinds and coke. There will be plenty of empties to return. Glenwhite Coal & Lumber will ship coal, finished lumber, coke, mine supplies and heavy machinery and, of course, more empties. The sidings at Gallitzin will handle coke and general freight of all kinds to the team track. Finally, the Altoona & Logan Valley will handle passengers and local freight.

All of this seems a fair trade for the scenery and "staging" possilbilities of the helix. I can provide scenery below track level by just elevating Horseshoe Curve. In that case the tracks to Gallitzin will actually be downhill. I'm thinking I can pull some magic by creating the illusion that they aren't.

Have to lay some of these ideas out in mock-up and see what it all looks like.

Various & Sundrie

Scan of Tunnel Portal

Now that trains are running again I started working on some details. First up were the bores through Tunnel Hill. I used Woodland Scenic cast stone portals. They look the most like the Pennsy portals I remember around Philadelphia. I took one of the castings and scanned it into the program Paint Shop Pro that I use for graphics. I then copied a section of the scanned stone work to a new image to create a graphic representation of the inside of the tunnel. I pasted the copy several times until I had a six inch long section of tunnel wall. Using some of the image manipulation tools I created "shadows" in different shades ranging into black. The idea was to mimic the inside of the tunnel and the graduating darkness you would see further away from the entrance.

Tunnel Interior Wall

Since my tunnels are only about six inches long I had to compress the effect. Once I thought it looked reasonably convincing I printed the completed wall section out on card stock using a laser printer. I then cut out the wall sections and glued them to heavier cardboard.

Assembled Tunnel

I fastened the "walls" to the portals using basswood  blocks and tacky glue, making sure the walls were flush with the portal openings.  I went the "good enough" route and didn't worry too much about lining up the courses of stone. I'm trusting that as long as the train looks like its entering a tunnel the viewers imagination will fill out the details. I also did not create "roofs" for the tunnels. I wanted to be able to access the inside "just in case".

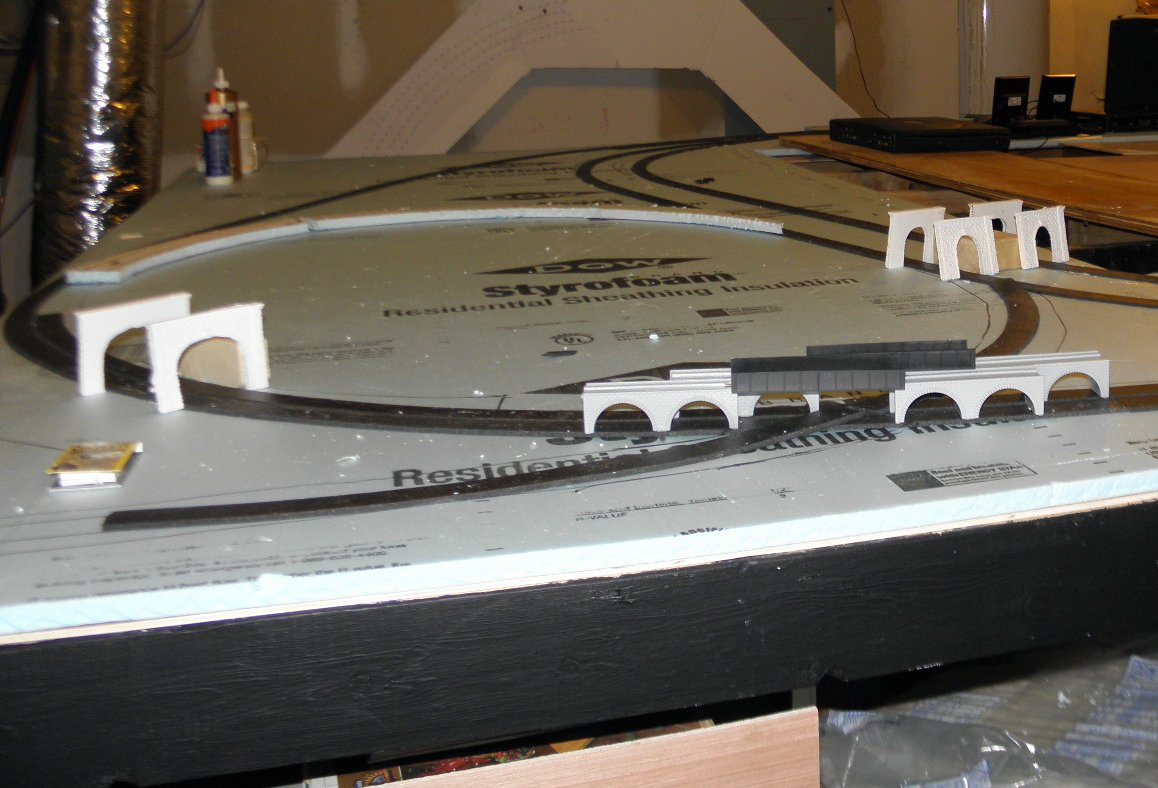

The twin bores, Gallitzin and Allegheny, just sit on the styrofoam roadbed, but the New Portage Tunnel is located where the eastbound mains climb toward the New Portage bridge. I had to construct an elevated base for the tunnel to sit on. I cut several pieces of scrap lumber to get the appropriate height and glued them with tacky glue.

East Portage Tunnel, East Portal

To the right is the east portal of the New Portage bore. The photo was taken from the eastbound track of the New Portage branch. The double tracks of the eastward main line bear off to the right.The overall effect is pretty much what I was hoping for. Even with the tunnels open to the ceiling lights they still appear to get darker towards the center. All in all, I think they'll look pretty good when everything is painted up and weathered.

Just adding these few details made a big difference in the feel of the Tunnel Hill area. It's getting easier to imagine the finished product.

Signage

There are several other items I've added that are what might be called "operational details". I made up small signs for the sides of the benchwork showing the name of each location and other pertinent information. On the left is a photo of the signs for Gallitzin. The location name is made to look like a PRR station sign. There is also a sign for the tower designation UN which controlled the westbound interlocking. I've yet to add AR, the tower that controlled the eastbound interlocking. I've also posted speed limit signs. Starting at UN headed west the passenger speed limit is 70 mph. Freight trains are limited to 35 mph, probably due to the fact that the route is all downhill into Johnstown. Don't want any runaways careening through the communities on the west slope. I still have to add speed limit signs for east bound trains. I haven't quite figured out how I want to show all this information. I'll probably have a column of signs for eastbound and a separate column for westbound. These signs are black & white. The finished signs will be color.

"Mile" Markers

 I also went around the layout with a 100 foot reel type tape measure and measured the main line. The flexible tape allowed me to follow the center of the track line, including the curves. I then marked the styrofoam roadbed at every foot. I found out that the eastbound mainline is 70 feet long, about 2.2 scale miles. The westbound mainline is shorter. At 63.5 feet or thereabouts, it scales out to 1.9 miles. Multiply those numbers by two and you get a total of 257 feet of mainline, just over 8 scale miles.

Beside learning the approximate length of my mainlines, the measurements will help in creating grades when the helix is installed and the tracks are elevated. It will also help in locating scenic details and other features. I'm playing with the idea of using the measurements in some sort of mile marker scheme. Haven't worked out the details yet.

Finally, I may have discovered a new method of creating spline roadbed. I had experimented with splines in an earlier incarnation of the All East but decided against it for a number of reasons. When I was creating the grade for the the New Portage bridge, however, I tripped over another way of accomplishing this. I would have missed it entirely had it not been for a conversation with my wife.

Spline Roadbed

Most of the time we work with styrofoam (or wood for that matter) we use what is called the "cookie cutter" method to build the sub-roadbed. No matter what you start with you end up with the general shape of the track plan in  generally horizontal pieces that the ballast board sits on. When I built the elevated portion of the eastbound mains I used vertical pieces of 1/2" thick styrofoam. I found that two pieces glued together was exactly the correct width to hold the ballast strip. I created the grade by cutting the styrofoam in long triangular strips, gluing them together and curving them as required. I was able to curve the stuff quite easily without breakage because of the thinness of the foam and the wide curves on the Allegheny Eastern. Once the glue set I had a strong light roadbed. I really didn't think too much about it at the time, but I had basically created a spline to carry the track up to the bridge and back down. What's more, I didn't have to create any supports. The grade was built into thhe triangular shapes and they could be glued directly to the tabletop. For the rest of the layout I had originally envisioned the elevated track and the helix being made via a variation of the old school "cookie cutter" method. Using the same construction as the New Portage grade, no cookie cutting is required. The entire thing, including the helix, can be built the same way. By cutting long triangular strips out of a 4' x 8' sheet of 1/2" styrofoam I can create spline road bed to support all the elevated track.

Allegheny Eastern Revised Track Plan, January 2012

1% Grade Elevation

I didn't think to take any photos of the actual grade construction so I made up some rough drawings. The Allegheny summit is at the west portal of the tunnels in Gallitzin. According to the measurements marked on the layout that's about 39 feet from ALTO tower (see track plan above). To create the a roadbed from ALTO to Gallitzin with a 1% grade would require eight triangular pieces  (four tracks) of styrofoam 468" long. Each piece would be 4.68" tall at the highest end of the triangle.

1.3% Grade Elevation

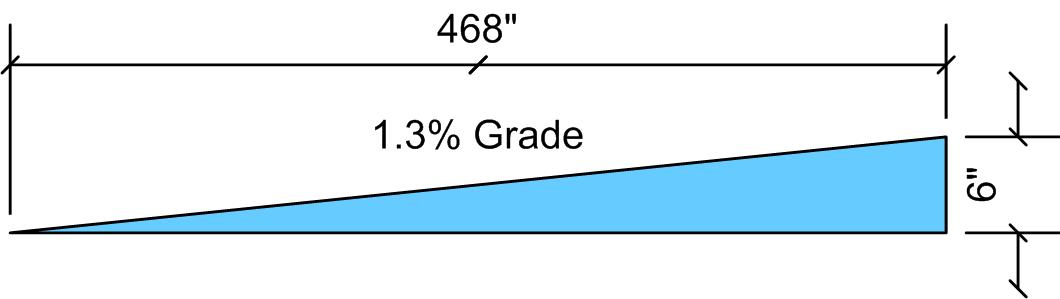

To reach the planned 6 inch elevation at Gallitzin would require 600" of spline. 600" is 50 feet, which would put the summit just pass ANTIS tower in East Altoona.. Not what I'm after. Going with a 1.3% grade would allow the track to rise to 6.084" while still maintaining the required length.

Spline Parts

Of course the spline would have to pieced together. You need 5 pieces 8 feet long to make up the first "spline". The elevation of each piece would start where the last one stopped off, going from 0" all the way up to 6". You would need 8 copies of this first spline and its parts. Once all the pieces are cut, you would then build the spline one 8 foot section at a time.

Spline Construction, Rough Sketch

You would need to install a section and let the glue set overnight before working on the next. Going too fast would probably end up in disaster. The curved sections will want to spring back to straight and things would be flying all over the place.

This method really lends itself to table top layouts like the Allegheny Eastern, especially if the top of the table is also foam. The splines are cheap to make. A 4' x 8' sheet of 1/2" extruded blue foam costs about $12 at the home improvement store. I get mine at Lowes. This is quite a bit cheaper than 2" thick extruded foam or 3/4" plywood normally used for layouts. It can be cut with a utility knife or razor blade. No saws required.

Resuming Operations

Heavy Traffic

Busy day at the top of The Hill. The westbound local from Hollidaysburg holds on the New Portage branch as a westbound passenger train clears the FS interlocking. An L2 helper is on the loop to return to Altoona. The helper has just finished assisting a westbound mixed freight.  Above on the eastward mains a passenger train headed to Philadelphia overtakes a coal train bound for Altoona yard. Since Tunnel Hill is still to be constructed both SF and Gallitzin are visible to the camera. Helper loop was unfinished when the photo was taken. The turnout and track to complete the connection to the eastward mains is now installed.

New Portage Bridge

Local from Hollidaysburg passes under eastward mainline as an L1s helper drifts down to Altoona. AP20 is heading up a Philadelphia bound passenger train on the Track 2. Bridges are cobbled together from Atlas viaducts and girder kits.

Bennington

Another L1s with a local freight climbs west while the passenger train drops down the grade at "Benny".  The tracks are separated vertically and the eastward mains are dropping down a 1.5% grade from the New Portage bridge to just west of Horseshoe Curve.Modeling in N scale on a larger layout allows you to put some distance between scenes. Gallitzin is almost fifteen feet west from this point, a bit under half a scale mile. Altoona lies about a scale mile in the other direction.

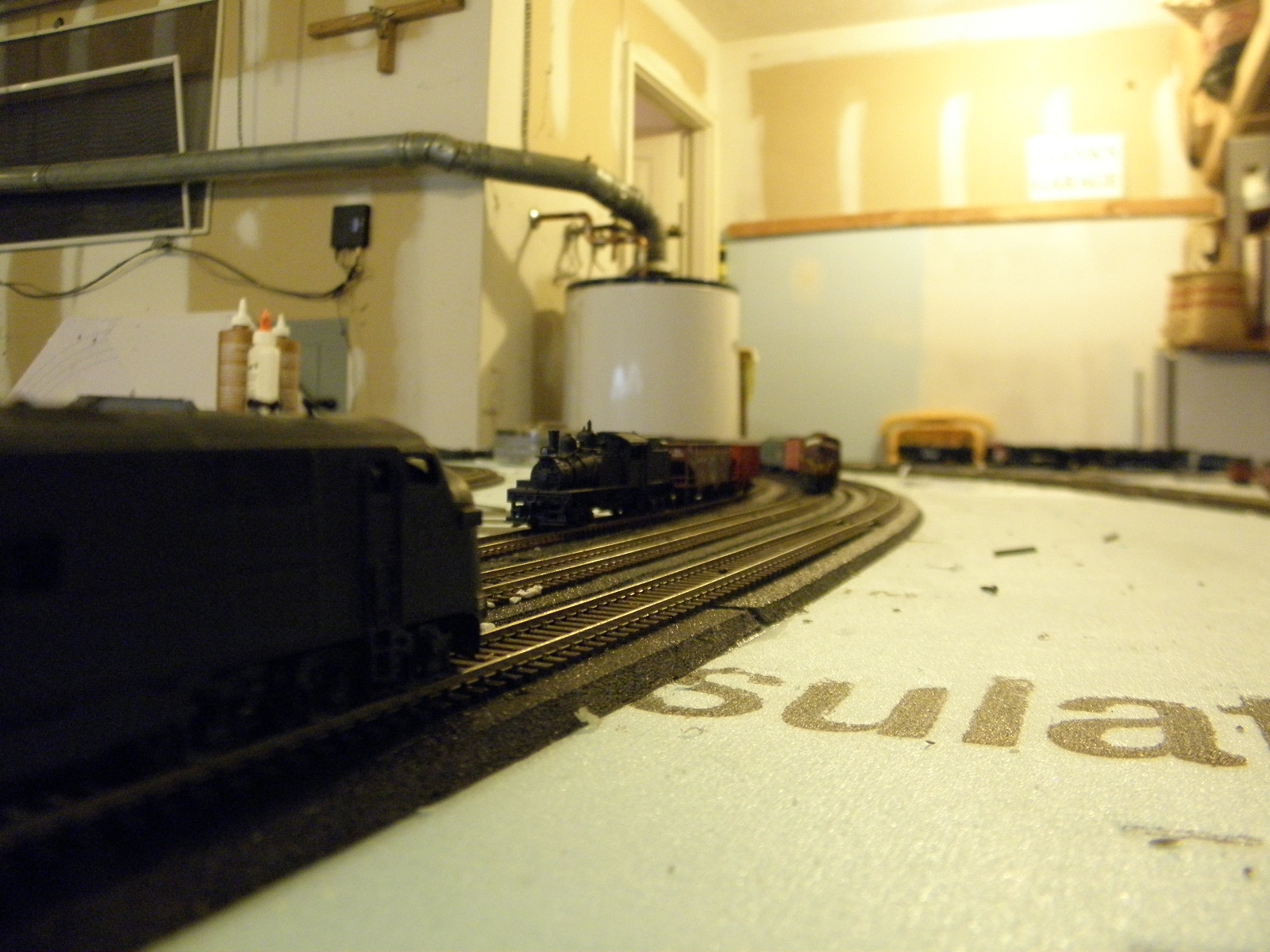

Glen White Interchange

At left the Glen White Shay  trundles off to the mines with two empties that a local freight has just dropped. The Glen White track runs along Burgoon Run and disappears behind Kittaning Point. When the cars are filled the Shay will drop them off to be picked up by another local heading east to Altoona.

Altoona Northern Interchange

At right an Altoona Northern crew drops a couple of empties on the interchange track in Altoona. The AN interchange is on the passenger mains and Pennsy switchers have to perform a tricky bit of maneuvering to pickup and set out cars here.

Altoona Yard

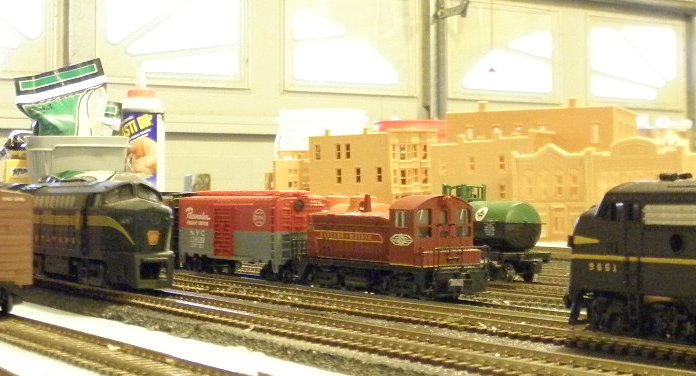

EMD demonstrator switches cars in the westbound yard as two freights "meet" on the freight main. Passenger main is just visible beyond tank car. Pennsy's multiple track mainline allows trains to meet without stopping. First of the five eastbound yard tracks is visible at the left hand side of the photo.

Realignment

East Altoona and Yard

The realignment is complete. All the main lines have been re-positioned with  wider curves and a few other "enhancements". Altoona now has sweeping curves at each end. The East Altoona engine terminal is beginning to take shape. The new diesel house and fuel facilities for steam and diesel are being laid out in the corner of the layout to the left of the roundhouse. Cabin cars and MOW equipment will also be stored in this area.

Altoona

The city of Altoona itself is in the same general location but the area is a bit larger due to the more generous radius on the curves. The Altoona freight house and related trackage has yet to be developed.

Horseshoe Curve

Horesehoe Curve has been widened and the Glen White Mining & Logging Co tracks have been installed on the Burgoon Run side (west) of the curve. The Glen White trackage now loops back into East Altoona as the Altoona Northern where it connects to the passenger mains.

Bennington

The top of the hill has changed dramatically. The westward mains are now separated for a longer distance and set farther apart. The New Portage branch has been added and the eastward mains are now elevated to run over the branch.

Gallitzin

Gallitzin has also changed quite a bit. The helper loop is now further east and there is a lot more space on this corner of the layout, enough for several sidings to serve industries or a mine.

Antis

The mainline between Gallitzin and East Altoona has been extended and now provides enough room for an interlocking. This area has been named Antis and will be the location of the helix when that is completed and installed. Gallitzin will be raised to allow the helix to pass underneath. The mains at this location will be realigned to spiral into the upper level of the helix.

New Portage

One of the "features" of the redesigned Tunnel Hill area is the bridge that carries the eastward mains over the New Portage branch. The branch was originally part of the New Portage Railroad constructed in the 1850's by the state of Pennsylvania. At that time the Allegheny Portage Railroad used incline planes with tow ropes to surmount the Alleghenies. The New Portage Railroad bypassed the inclines and provided an rail route over the summit. The Pennsylvania purchased the New Portage and used it until its own route over Horseshoe Curve was completed. The New Portage was abandoned in 1857. The right of way was reopened in 1904 as a bypass for freight traffic. The route had its own 180 degree curve similar to Horseshoe, called Muleshoe. The branch was abandoned for the second time in 1981, this time by Consolidated Rail.

New Portage Branch

Part of the latest revision to the Allegheny Eastern is  the inclusion of the New Portage branch (or at least the suggestion of it). This required the construction of a set of stone arch and girder bridges and a grade to get the eastward trains over the branch. In the photo to the left a class AS16 hauls a MOW car on the branch while a EP22 hauls a local the wrong way on the eastward main. Nothing is running right now, the shot is staged. I was checking clearances under the bridge with the Alco and the boxcar. Vertical tolerance is tight to keep eastward grade down to 1.5%.

Eastward Grade Roadbed

The grade itself is constructed of laminated strips of extruded foam covered with ballast strip. The entire assembly is held together with tacky glue and then weighted and clamped into position until the glue sets. This is the eastward freight main. The ballast strip directly adjacent on the right is the location of the eastward passenger main which is now in place and setting up. The the eastward mains are carried over the branch by two separate but identical stone and steel bridges. The real bridge was a single concrete span and quite a bit different. I used some Atlas viaduct and bridge kits I had on hand and got creative.

Wide View of Tunnel Hill Area

The wide view on the left shows the progress on the revised area. The branch runs under the eastward mains and connects to the westward mains via a wye switch. The second eastward main runs adjacent to the first with a slight separation at the bridges. Beyond the wye switch will be the west portals of the twin tunnels. The curved foam piece just beyond that is a template for the helper loop. It will run uphill to join the eastward mains where the white box sits. Way off to the far left is the future location of the Gallitzin "industrial area". Between the helper loop and the branch will be Tunnel Hill and the town of Gallitzin itself.

As I mentioned earlier the eastward freight main is in place and I'm waiting for the glue to set up. I hope to complete the grade and install the remainder of the ballast strip for the mainline over the next few days. Track will be laid and there is a good chance trains will be moving again later this week.

Morphing Yet Again!

While working on the layout today I realized that maybe there is a method to my madness. The Allegheny Eastern is constantly in a state of flux. I try out new ideas as I go along and if I like what I see I apply it to other areas of the layout. The design evolves as I work on it. This morphing is possible because of the construction methods used. The sub-roadbed is 5mm plywood and gives support and stability to the half-inch extruded (blue) foam. Both the foam and the plywood can be cut with a utility knife. The blue foam is glued to the plywood with DAP acrylic caulk and can be easily removed with use of a wide blade putty knife. The ballast strip is then attached to the blue foam using "tacky glue" used in scrap booking. The glue is similar to what is used on post-it notes. It holds the ballast strip firmly in place but still allows me to pull it up and relocate it. The track is held in place by mechanical means, half-inch wire nails inserted every 4 inches or so. This wire nails are easily removed whenever necessary and are really a temporary fastener. When the track is ready to be affixed permanently, the ballast and glue will secure it.

Long sections of track can be pulled up and relocated rather quickly. Laying it down takes a bit longer, especially if I have to add new sections and pre-drill the holes for the nails. Even that goes rather quickly. A few hours work and the track is relocated and fastened down firmly enough for trains to run again. It's rather like relaying sectional track on a table top, just a little more sophisticated.

You might think this would be a bad way to do things, Normally a person might build a layout and learn some lessons and techniques they can apply to the next layout. The next project incorporates the lessons learned and the result is a better model railroad. This takes several years and a number of layouts. The All East works pretty much the same except that it's "one" layout. The lessons learned don't wait for the next layout. They are incorporated into the current project. The layout "morphs" as the design crystalizes.

The recent rework is a prime example. After running trains for a while I saw things I wanted to change. That's when the 8' x 5' extension came into being. By using more of the garage I was able to add space for a huge helix and more operating possibilities. By adding an extra foot of width to the Altoona area I was able to redesign the yards and include the East Altoona service facilities.

This redesign of Altoona led to still another improvement. After creating the sweeping curves for the mains in this part of the layout, it occurred to me that I could realign all the curves on the layout and increase the minimum radius. I had wanted to do this after I noticed that some of the longer diesels and eight coupled steamers didn't seem to operate as well as they should on the tighter curves. This realignment doesn't require any drastic benchwork revisions. It's simply a matter of adding a few inches to the radius of some curves and relocating others so they "flow" better. I'm also taking the opportunity to widen Horseshoe Curve, making sure it doesn't interfere with the helix by placing the mockup in position on the benchwork.

Tim Muirs Virtual Pacific Electric

I'm also able to incorporate design ideas that I have stumbled upon from unsuspected sources. While I have track charts and photos up the wazoo, there are just some portions I couldn't find enough information on. Then about a week or so ago I was surfing for screen shots from the various train simulators. I use them as screen savers on my computers. The guys who create these "virtual" layouts are artists in a whole 'nother media. Many of them resemble paintings and in some cases I have had them framed as artwork. The screenshot on the right was taken from Tim Muir's Pacific Electric. The layout was created using Microsoft's Train Simulator.

Trainz Layout of Glen White Branches

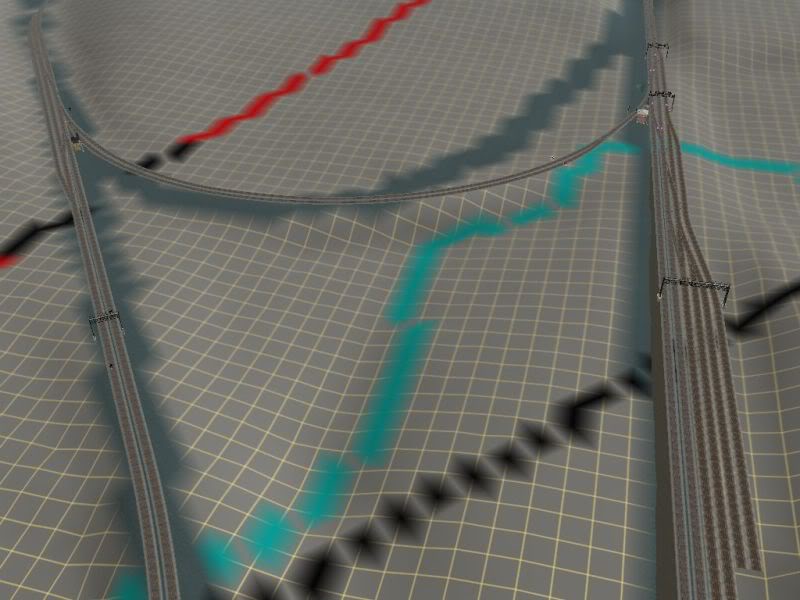

Anyway, a fellow is modeling the same section of the PRR I am, but using the Trainz Simulator program. I don't know his name but he uses the handle "cascaderailroad" and claims to be 95 years old and living at Vostok Base in Antartica! The pictures of the track layout he posted clarified quite a few things I had been wondering about. He has modeled the Glen White branches that ran up either side of Kittaning Point. None of  the photographs I have of this area shows this arrangement as clearly as this virtual version. It's easy to see how the two branches through Burgoon Run connected on the west side of the curve. The track on the east side is the Baker Run branch and includes the spur to the old coaling station at Kittaning. Even the depot, interlocking and freight station are shown!

Virtual Altoona Freight Station

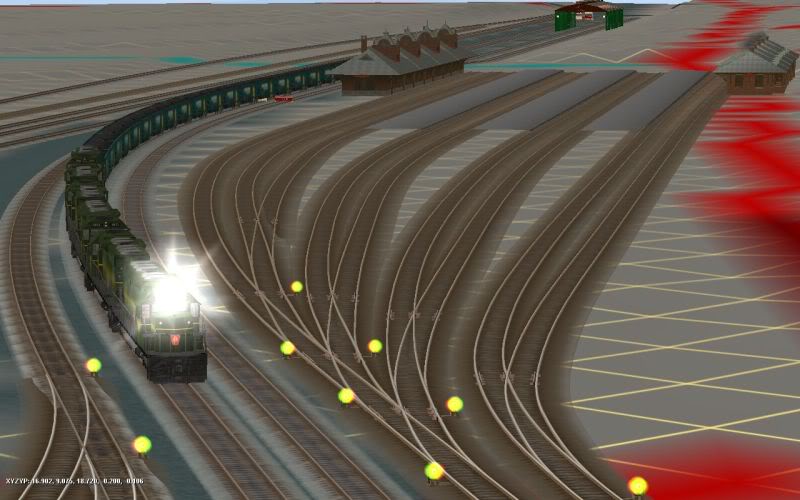

He has also modeled the freight house yard in Altoona with its paired tracks and platforms. I have a photograph of this area but it doesn't really show the orientation of the freight station and tracks to the main line. Here it's very clear. The Altoona train shed appears in the upper center of the picture.

The simulator can model the entire PRR installation at Altoona and that is what has been done. I found screen shots of the yards, the interlockings, tower locations and a myriad of other details.

Looking East From Tunnel Hill

One area I really couldn't visualize is Tunnel Hill. There really isn't any camera view large enough, just bits and pieces showing individual details. I learned more from the one view at the right then I had in months of research. The eastward and westward tracks are at different elevations. Westward trains can use either tunnel and the "New Portage" branch (Hollidaysburg) passes under the eastward tracks. I've been dissatisfied with the east approach to the twin tunnels since I first laid them out. Now I'm in the process of modifying this area of the layout too.

Tunnel Hill, Reimagined

I completely rebuilt the "west" end of the layout tore up all the track and ballast strip and laid a new top and foam. Then I started redesigning the area based on the new information. The curves are wider on all tracks. I moved the twin bores further apart and shortened the planned length of all three tunnels. I also included the New Portage branch, though I still have to work out the exact position. I plan to elevate the eastward mains and a stone and girder bridge over the branch. The branch will be long enough to store a short train. There is also some room to build a siding for an industry.

Gallitzin Loop

One other place I'm wasn't satisfied with is Gallitzin. for one, the helper loop was actually two tracks. On my track charts from the 30's the tracks are labeled for Altoona and Johnstown. Helpers were working in both directions and turned on this loop to return to their respective bases. I don't intend to incorporate the helper operations on the west slope, but I would like to suggest they exist by modeling the second track. Perhaps I could park a dummy K4s on the Johnstown loop. Those additional sidings look tempting too. The signal and tower locations are also details I would like to incorporate.

Gallitzin, Revised

On this side of Tunnel Hill I kept the westward mains separated. They come together just as they begin to descend the planned helix. The helix will actually run under part of the section shown in the photo at right. The helper loop is further "east" than it formerly was. and will have two tracks.

There is also more room in this area than before. I plan to add industrial sidings in the lower right hand corner. I may also consider "industrializing" the area between the mains. This would add local freight trains to the scheme of things. This should complicate operations enough to make things interesting.

"Portage" Branch

The New Portage branch will pass under this bridge (after the mains are elevated) and stop at the end of the benchwork. There are no plans to expand it, I'm out of garage. In a kind of staging operation a train will hold on this track periodically to simulate traffic up and down the branch. I'm mulling over the idea of placing an industry in this corner. Eventually the helix will be in place and this entire area will be elevated six inches or so above the benchwork. For the time being, however, the world is flat and that bridge will be the highest point of the layout.

Modeling Altoona

PRR Standard Roundhouse

With the general arrangement of the mainline complete in other parts I started to revise the Altoona section of the layout. I laid out code 55 flex to get the new locations of the mains and yard tracks. I also began mocking up the service facilities in East Altoona. There is no room for a full 360 degree roundhouse so I thought I could get away with a 180 degree building like the one at Crestline. I made copies of the PRR standard and cut and pasted (the old analog way) together a 25 stall facility. Unfortunately the prototype tracks to each stall are about the same length as the turntable. The resulting semi-circle requires too much real estate. The building will fit on the layout, but only by moving the mains back towards Horseshoe Curve. Some separation between these two areas was part of the reason for the layout expansion so this would have been a step backwards.

East Altoona Roundhouse

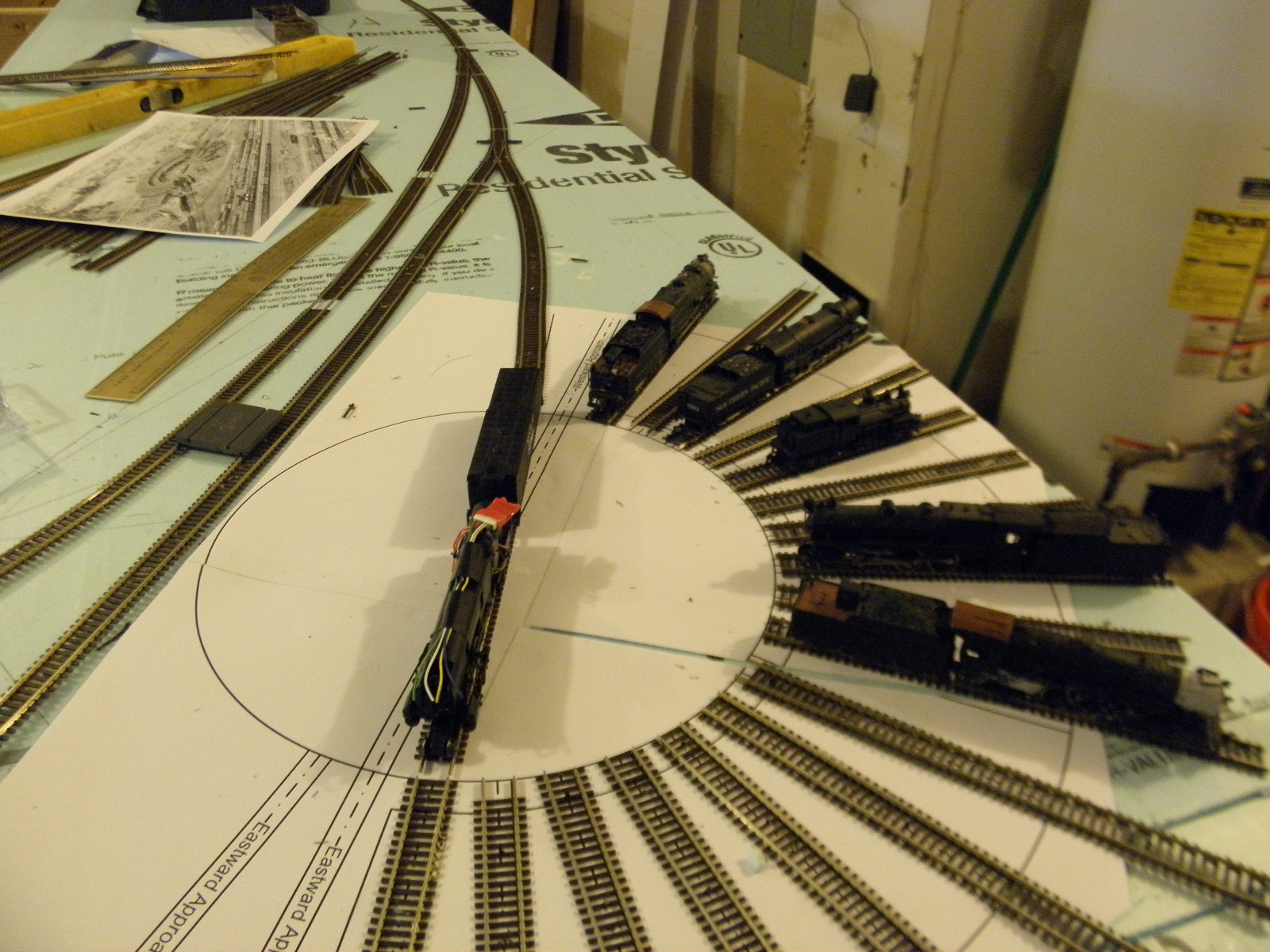

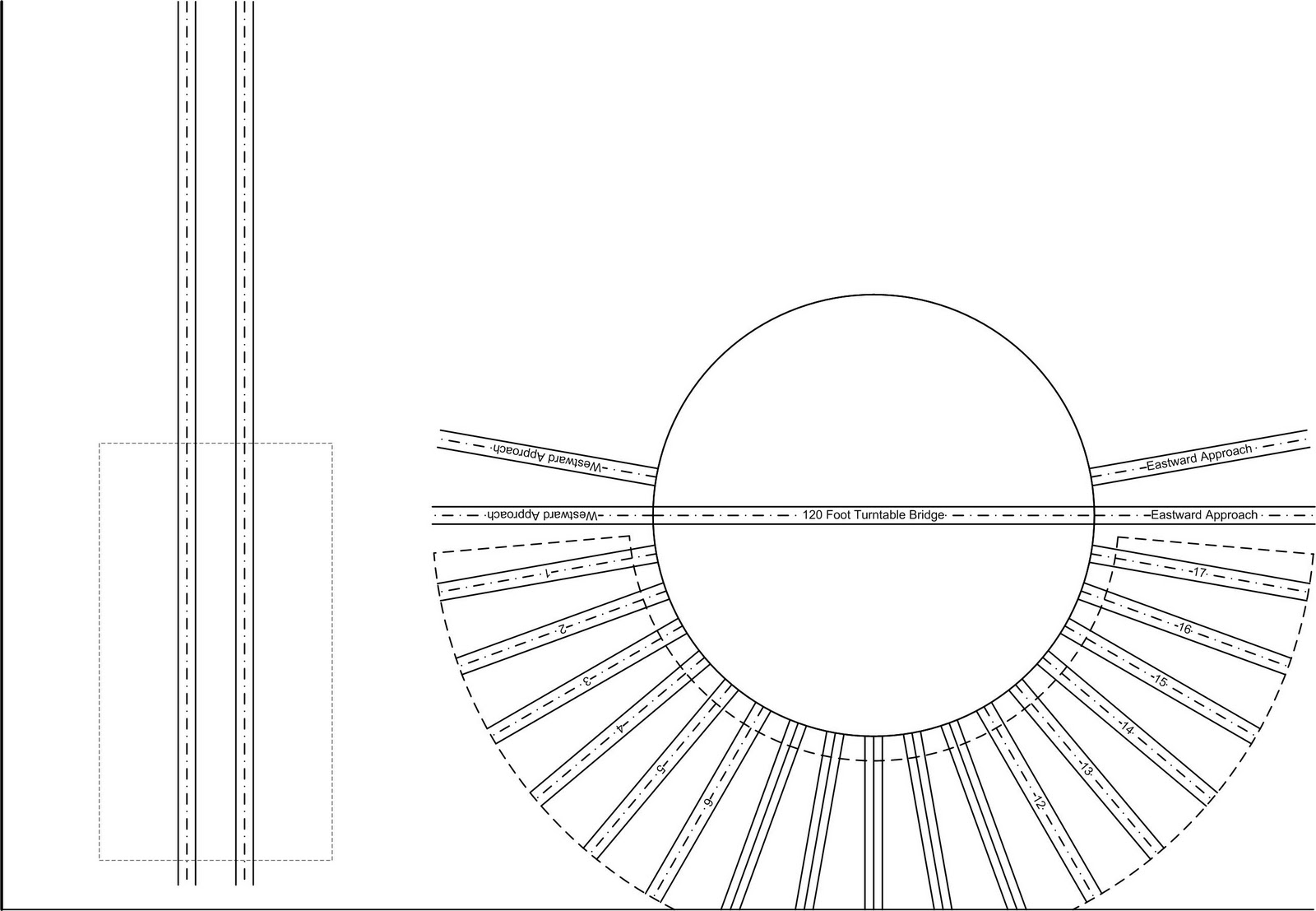

I revised the roundhouse plan by creating one from scratch using Microsoft Visio. I spaced seventeen tracks at 10 degrees. By using some of the dimensions from a plan of the Crestline roundhouse I ended up with this freelance design. I shortened the tracks to each stall considerably. The roundhouse fits better due to some "selective compression". Somehow, however, I got the dimensions wrong front to back. The building is too "shallow", measuring only about 60 feet or so. It should be at least 120 feet deep, about the same length as the turntable.

East Altoona "Mock-Up"

In the mock-up this is readily apparent by the fact that none of the 2-8-2's or the 4-8-4 fits within the building outline. The turntable itself will be just long enough to hold the 4-8-4 (and maybe someday a 4-4-4-4).  The roundhouse is currently located in such a way that stalls 7 thru 11 (counter clockwise) will be "cutaway" and open to the viewer. The edge of the layout cuts across at this point. Since East Altoona is the part of the layout most folks will see first I may have to do some interior detail. We'll see what happens when I get around to constructing the roundhouse itself.

Glen White Shay

The actual roundhouse will be built large enough to actually shelter the bigger engines. Only the Glen White Shay fits within the lines of the building in the drawing. You can see this limits the use of these stalls to short switchers. Those Mikados on the left and right are dangerously close to going over the edge and hurling 700 scale feet straight down. One thing for sure, there will have to be a clear acrylic "wall" in this area. Besides the danger of running an engine off the layout, there is always the chance of little fingers going astray.

Diesel House?

To the  right of the roundhouse I plan to model a diesel house and service facility for all the "growlers" on the property. Although there was no such animal at Altoona, I'm invoking artistic license. Many railroads built brand new structures for the repair and maintenance of their "cutting edge" technology. The first generation cab and hood units were still new and shiny and railroads tried to keep them that way. In front of the diesel house I plan to model a fuel facility. If space allows I may even include a place to wash the grime off.

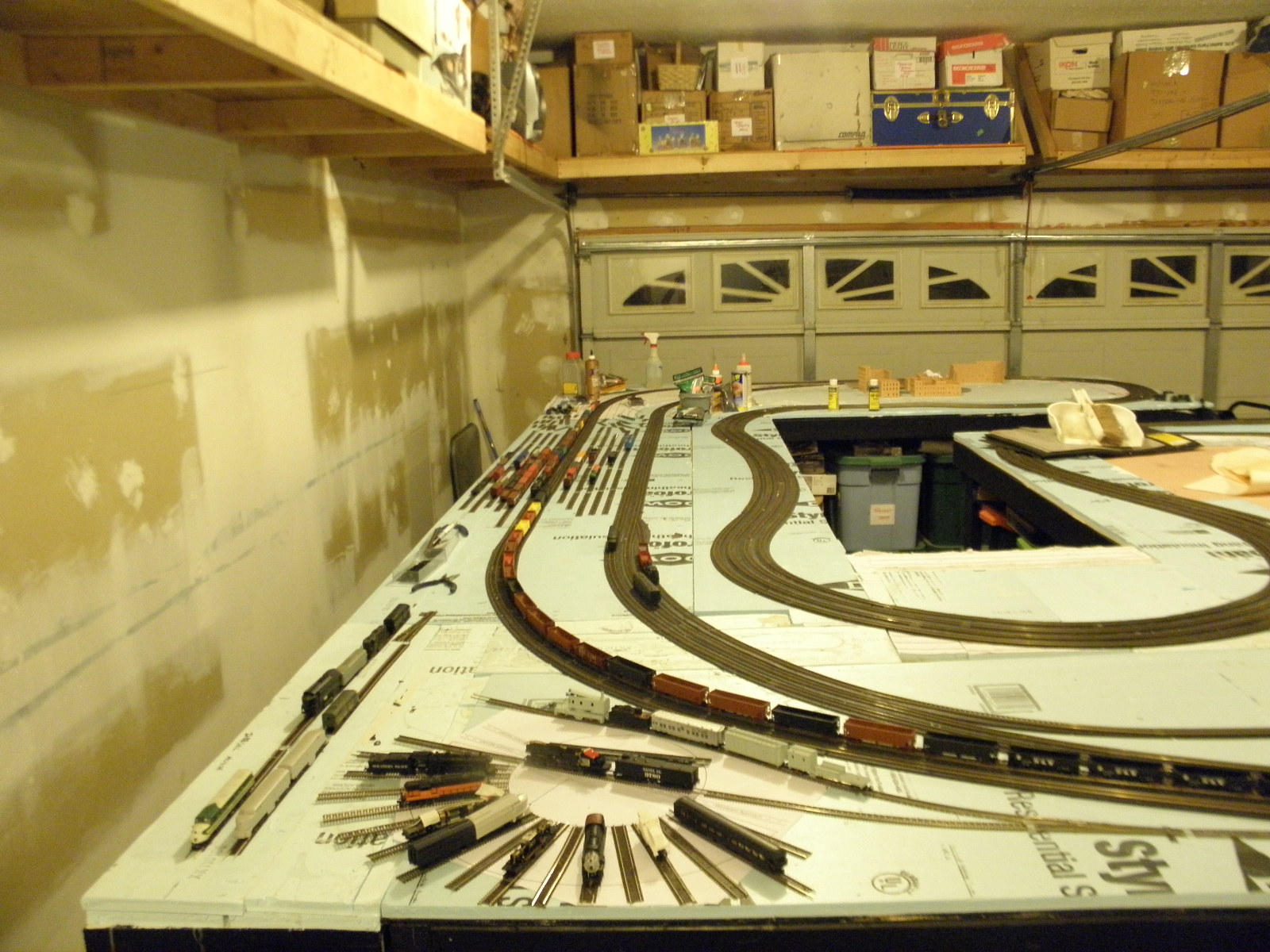

Altoona Yard Layout

I had laid out the yard tracks earlier to find out exactly where the main lines would run. There are five tracks for the eastward yard and five for the westward yard. The freight mains run between the two and are elevated on foam ballast strip. The two passenger mains run to the right of the eastward yard, also elevated on foam ballast strip. After laying out this section of yard I was able to see for sure that there was more space available between the yard area and the approach tracks to Horseshoe (under all those freight cars). Once I had established the locations of all these tracks I shifted my attention to East Altoona. I needed to make sure the tracks would flow smoothly between these two locations.

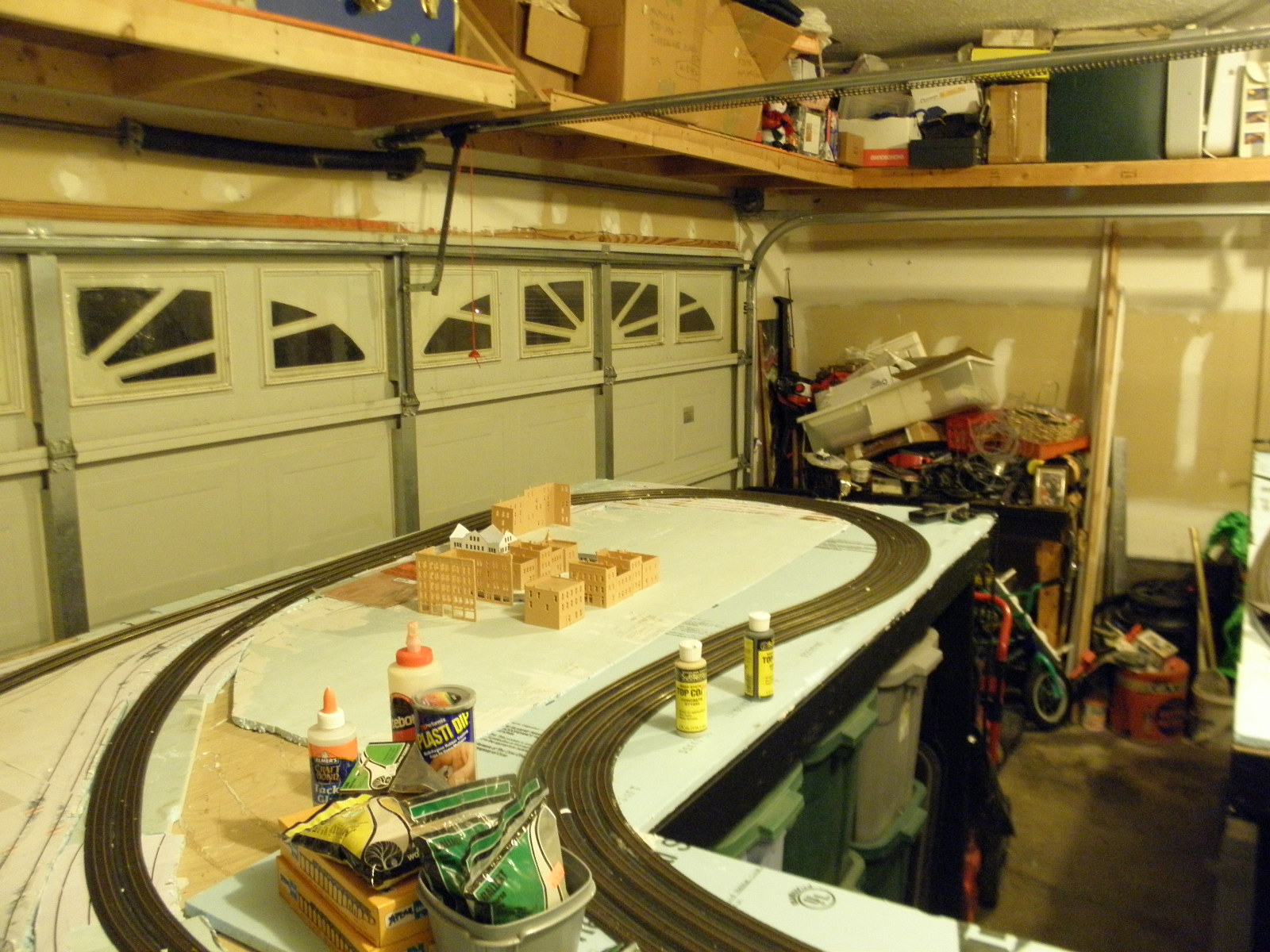

Freight Main & Roundhouse Approach

With the engine terminal in place I created a sweeping curve into the yard on the eastward main. Both freight mains will follow this line while the passenger mains curve tighter to the right towards that jar of ballast in the distance. Once again I wanted to make sure that there was a certain amount of separation between this area and Horseshoe Curve (also under all those freight cars).

The track immediately to the left of the main is the "bypass" track. This enables locomotives to get to the service facilities without using the turntable. You may be able to see that it skims the pit by a just few feet. Most model railroads don't include this feature and I thought it was a good idea. Locomotives don't always need repairs, just coal and water. Eastward and westward locomotives will be able to use this track when accessing the service area.

Altoona Yard Looking East

Another view to the left shows how the mains will look from about the center of Altoona yard. You can see the foam ballast strips that support the mainline. Everything else in this area is at "ground level" directly on the styrofoam and will be ballasted with cinders. Because of the extended benchwork it is now possible to put some scenery between the passenger mains and "The Hill". I'm hoping I can squeeze the A&LV through there too. The trolleys stopped at East Altoona for shop employees.

M Class Being Turned at East Altoona

These last couple of pictures are just for fun. To the left an "M1" is being turned to stall 17 for some much needed work on its superstructure. A DCC equipped Bachmann 4-8-4, the locomotive will receive the boiler, trailing truck and other parts from a Trix K4s. The tender will be modified into a PRR long distance unit. The L2s in the stall is a Model Power unit and also needs work. Not sure what will become of it just yet...it's a poor runner for several reasons. I may modify it so it bears a closer resemblance to a real Pennsy L2s and use it in helper service.

Oops!

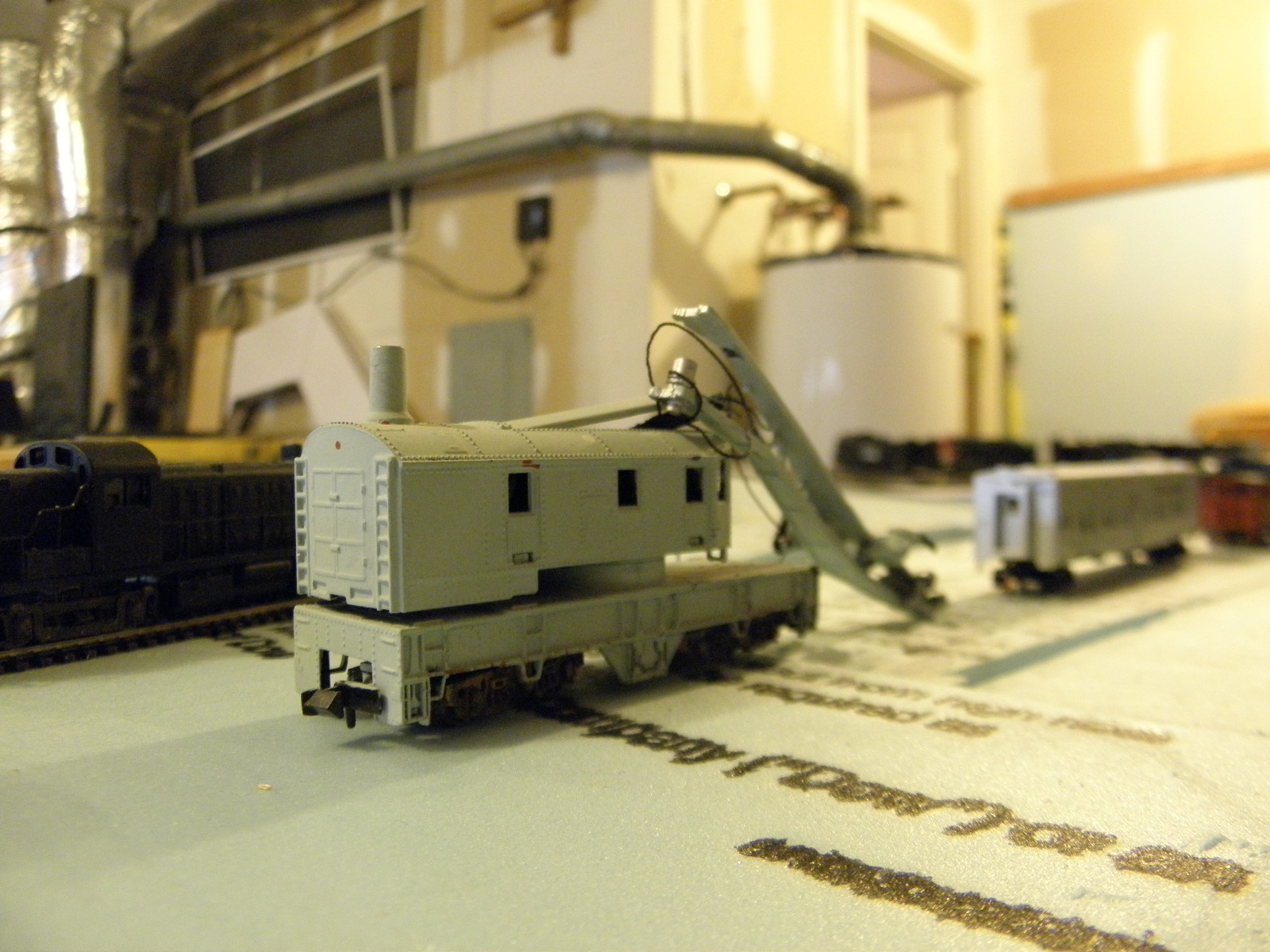

Not all has gone well with the layout expansion. Witness this wrecked wreck crane! The poor thing was minding its own business over in West Altoona when a huge 2" x 4" slammed into the table. I was reconstructing the shelving in the garage and managed to drop the lumber on my wreck train. The crane and a tool car are both damaged. Bunk car to the right of the busted boom survived unscathed. Despite this accident the garage walls are now open on all sides to a height of 90 inches. Next comes prep and sky blue paint. Yes, I do know most people would have done this before building the layout. My techniques are a bit unorthodox, but some things occur to me gradually. I really cannot visualize all this stuff ahead of time. It just sort of happens as I go along. Regardless of all the labor involved by redoing things I find it works for me.

L1s

L1s lounges in roundhouse stall 1 while another Mikado rests in stall 3. The other 2-8-2 (#3303) is a Kato model waiting for its GHQ conversion. Layout construction has taken precedence over modeling and there are several locomotive conversions on the back burner. Besides the M1 a BP20 and a BF15 are also in the works. There is also a slew of freight and passenger cars slated for repainting and backdating.

No rush, this is a hobby after all. Only deadline is to get the mains back in service before grandkids Audrey and Jonah show up in a few weeks.
